A public SCADA demo running live simulated plant data, with a runtime toggle between simple and photorealistic pump and pipe rendering—the ISA-101 argument as a setting.

Inductive Automation Live public demo both theme IoT and energy

inductiveautomation.com , opens in a new tab Live demo , opens in a new tab

Patterns seen here 5

Captures

1 capture, newest first. Hover any box for the pattern and the note.

Ignition — Water Treatment / Overview
Process mimic. Flat two-dimensional shapes, values placed where the instrument is, and the flow ordered by process rather than by geography. Dense small-multiple layout. Nine filters, identical four-value panels. Reading one teaches you all nine, and the two stopped ones are found by shape. Gauge and dial. Tank level as a filled vertical scale—a bounded range where the endpoints are the physical tank, which is the case the gauge survives. Grayscale with alerts. Green for running, on every unit. The opposite of grey-at-rest, and it works only while stopped is the rare case. Process mimic. Pump and pipe appearance switchable between simple and photorealistic. The whole ISA-101 argument, shipped as a setting. Semantic status color. Stopped is grey and says Stopped. Colour and word together, so the state survives a monochrome screen.

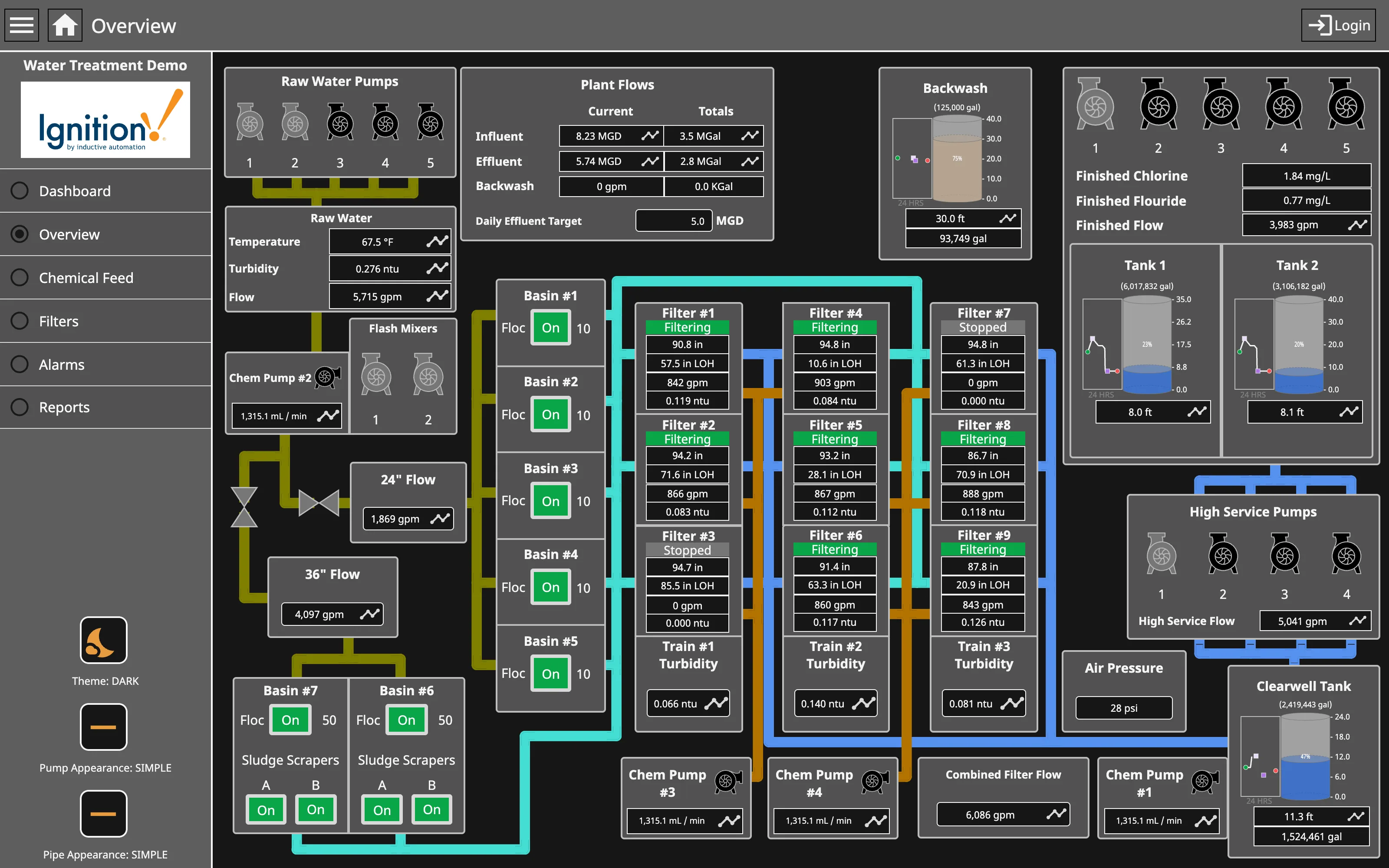

Water Treatment / Overview September 11, 2026 Ignition Perspective public demo, Water Treatment (signed out) dense · dark · desktop-web
A real process mimic with live simulated plant data, and it settles two arguments from the entry. The first: the layout is topologically faithful and geometrically loose. Raw water pumps at the left, flash mixers, seven basins, nine filters, tanks, high service pumps, clearwell—the flow reads left to right because that is the process order, not because that is where the equipment stands. The second is where it departs from ISA-101, and the departure is deliberate. Green here means running. Every basin, every flocculator, every filter that is working is green, so most of the screen is coloured and the two stopped filters are the grey ones. That inverts the high-performance HMI rule—colour reserved for abnormal—and spends the budget on the ninety percent case. It is still readable, because the abnormal state is the absence of a colour everything else has, but it only works while "stopped" is rare. The pipe colours are a third channel again, encoding which fluid is in them rather than any state at all.
  • Process mimic Flat two-dimensional shapes, values placed where the instrument is, and the flow ordered by process rather than by geography.
  • Grayscale with alerts Green for running, on every unit. The opposite of grey-at-rest, and it works only while stopped is the rare case.
  • Dense small-multiple layout Nine filters, identical four-value panels. Reading one teaches you all nine, and the two stopped ones are found by shape.
  • Semantic status color Stopped is grey and says Stopped. Colour and word together, so the state survives a monochrome screen.
  • Gauge and dial Tank level as a filled vertical scale—a bounded range where the endpoints are the physical tank, which is the case the gauge survives.
  • Process mimic Pump and pipe appearance switchable between simple and photorealistic. The whole ISA-101 argument, shipped as a setting.
